DEUTA SiFa Safety System

The Safe Product Package

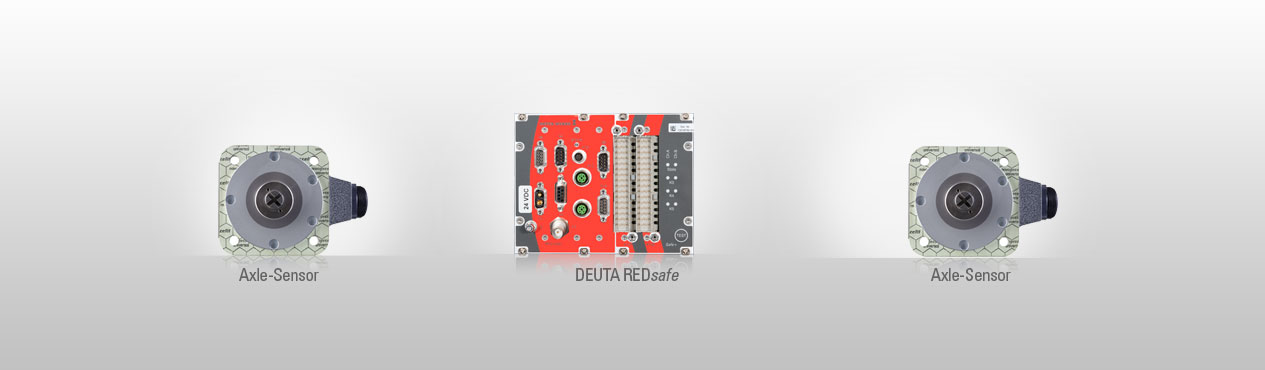

The DEUTA DSD Safety System is a SIL certified product package, consisting of the safety unit DEUTA REDsafe and either two wheel pulse sensors or pick-up sensors. The standard SIL system is the on-board extension of track based safety systems such as intermittent automatic train control PZB, continuous automatic train control LZB and the European Train Control System ETCS. The system concept corresponds to the safety-related application conditions SIL 3 for DSD, with due regard of standstill detection, monitoring of maximum speed and monitoring of limit speed.

With SIL Certification

The DEUTA DSD Safety System was assessed as a standardized, project-neutral product package. It can easily be implemented on trains up to 200 km/h as a finished product package without further development afforts and technical clarification.

Advantages of the DEUTA DSD Safety Systems:

  • Finished defined product package
  • Available assessor certificate - up to SIL 3
  • Short engineering phases

Generically assessed

While project-specific assessments are individually reviewed and evaluated, DEUTA developed the DSD Safety System as a standard solution wich is on the device side, applicable without development and assessment effort for vehicles with a maximum speed of up to 200 km/h.

The assessment of the TÜV Nord confirms the range of the products.

Safety Level of DSD Safety Systems:

  • DSD according UIC 641 and DB specification SIL 3
  • Standstill detection SIL 3
  • Monitoring of maximum speed SIL 3
  • Monitoring of speed limit SIL 3
