DEUTA Multifunctional Terminals

DEUTA Multifunctional Terminals stand for a future-oriented display generation that is always at the cutting edge and is as flexible as it is economical. When developing our MFTs, we make the latest  technology available for applications in rail vehicle traffic. SIL-capable Multifunctional Terminals with patented IconTrust technology are the new standard in terms of driving safety for displays which meet the safety standards of today and tomorrow.

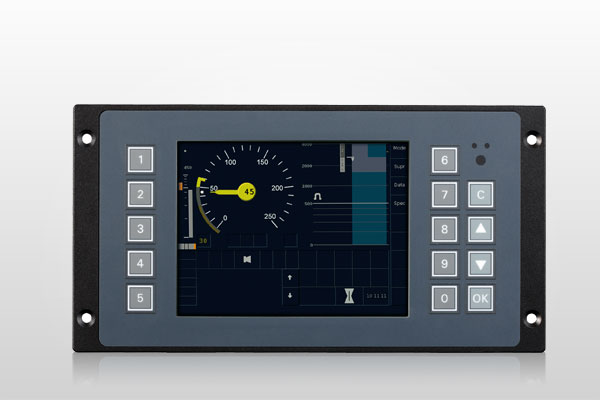

DEUTA MFT5/2 compact display

The compact success terminal of the third generation

Multifunctional Terminals (MFT) with 6.5" were deployed in trams and metro projects already in the mid 1990s. The first MFD 5  was delivered in 1996; the displays are in their third generation now. The use of the MFT 5/2 as successor to the MFD 5 virtually increases the service life of the on-board computer. Thus, DEUTA now covers an availability period of 20 years with identically constructed displays.

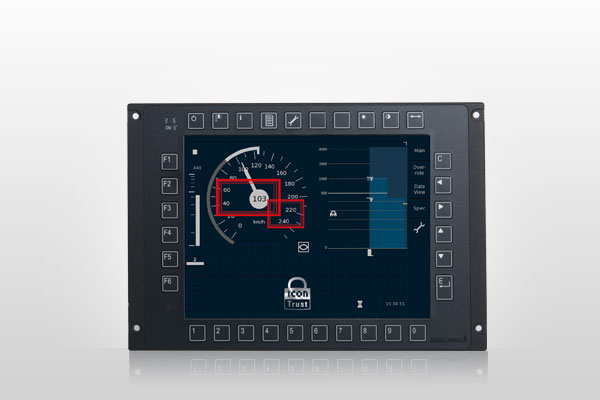

DEUTA MFTS11 with IconTrust®

Safety and reliability with IconTrust®

The MFTS11/2 is equipped with the patented IconTrust technology as standard. IconTrust monitors dedicated areas on the TFT panel and differentiates between
safety-related and non safety-related information.

Each of the individual areas of the displayed image are analysed and compared to the value of the respective input variable during every image refresh cycle in IconTrust.


DEUTA MFT111 with AMD Fusion Processor

Pure performance in the driver’s cab

To the DEUTA MFT111 applies: few components, few connectors, everything on one circuit board and only little power loss. In this way DEUTA achieves that each individual application is available reliably and in short-term and even exceeds the record-breaking MTBF-values from the field data.

The AMD Fusion Dual-Core Processor is optimally suitable for higly-performant applications, such as e. g.
                                                                          IP-video applications.

The compact housing of the MFT111 fits even in tight installation conditions. Optionally equipped with IconTrust, the MFT111 becomes the SIL terminal MFTS111 with a maximum of certified safety.

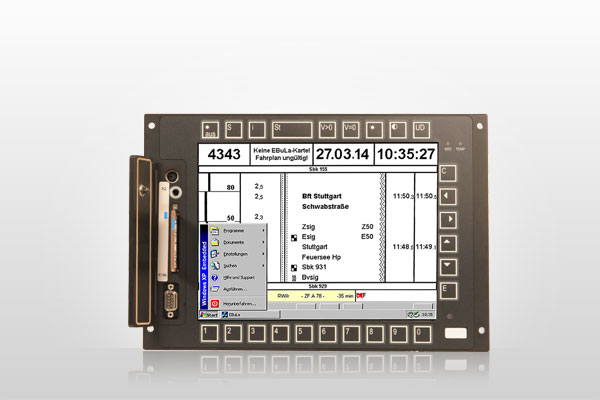

DEUTA MFT102 for EBuLa Applications

Practically maintenance-free Multifunctional Terminal

The EBuLa display MFT 102 does not make use of accumulators or moving parts such as blowers, CD ROM and disc drives making it practically maintenance-free.

Only the internal flash disc as well as the background lighting need to be considered depending on the area of application. Positive spin-offs are high MTBF values and improved temperature behaviour.

Simple runtime diagnosis

An environmental controller simplifies the runtime diagnosis of the display. Using an USB stick the operating hours and conditions of individual subsystems can be read out allowing for optimal planning of maintenance intervals. The presented screen contents and keyboard confirmations are stored continuously and can be read out at any time.

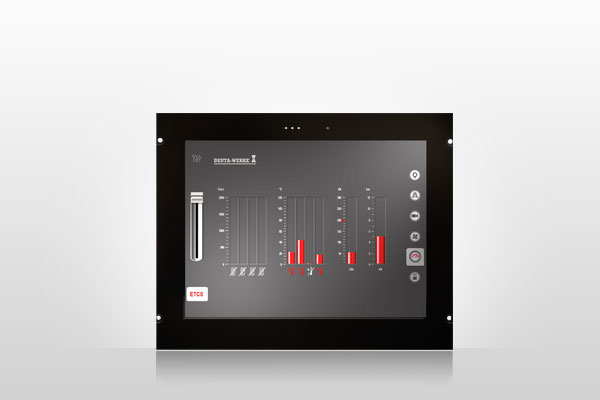

DEUTA MFT - 15,0" & 15,6"

Everything at a glance in XGA | SXGA | WXGA

The Multifunctional Terminals with XGA, SXGA and WXGA resolution upgrade each driver's desk. Brilliant in their presentation thanks to optical bonding technology.
The new mounting and installation options of the capacitive touch DMIs provide a smooth surface and enough place for different appplications, even with safety function.

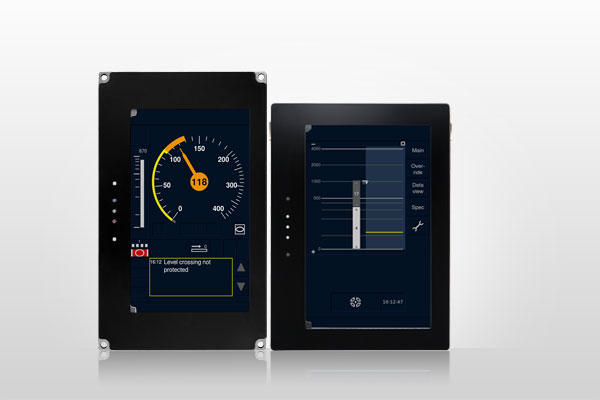

DEUTA ARM Terminal 8"

DAT1080/2080

The DEUTA ARM Terminals (DAT) can be used optionally as single terminal or as redundant double display to increase the availability.

With its compact housing shape, the DAT in the redundant double display variant is compatible with the standard 10" displays.

Optionally, the DAT units are equipped with the patented IconTrust technology as standard.

DEUTA ARM Terminal 5"

DAT2050

  • Thanks to its lean design, the 5" DAT2050 ARM terminals can be applied as HMI in many fields and as a flexible alternative to analogue indicators and push buttons. Even smallest details are sharply shown due to a high resolution of 800 x 480 pixels.
    The optically bonded capacitive touch panel offers very good readability from all angles.
