IconTrust® HMI

Digital Functional Safety up to SIL3

Galerie öffnen
  • The IconTrust® HMI is based on a brilliant TFT screen. Indicator lights and push-
  • buttons can be configured via a web browser in a very short time – and adapted to meet the needs of specific projects in a variety of ways. Time- and cost-intensive work steps for project changes are not necessary. The new operating units are reconfigured remotely on the HMI. A typical IconTrust® HMI application is the design of digital operator panels with SIL requirements. While hard-wired panels are built in many steps and project changes are time consuming and cost-intensive, IconTrust® HMI creates digital panels to safety levels up to SIL3.

DEUTA IconTrust® HMI

  • 12“ TFT Monitor, 1024x768
  • Display SIL3
  • Input SIL2 (touch)
  • PROFIsafe V2.4, V2.6.1
  • Visualisation with a web-based configuration
  • 20 SIL display and input fields per screen mask
  • Various screen masks
  • Display of safe and non-safe content (HTML5)

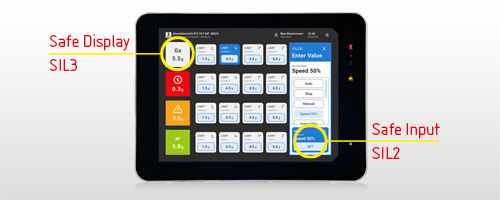

Commercial Off-The-Shelf Safety: Safe Display - SIL3 - Safe Input - SIL2

Typical Applications - IconTrust® HMI

  • Matrix panel
  • Operating mode selection
  • Recipe selection
  • Batch selection
  • Process value display and input
  • Alarm lists
  • Standard operating procedure
  • Maintenance override (MOS)
  • Hybrid operation (non-SIL and SIL)

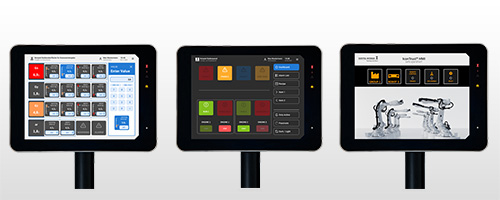

Safety with great flexibility - examples of typical applications

The safe IconTrust® HMI technology certified up to SIL3

  • Acc. EN 50126, EN 50128, EN 50129
  • Acc. IEC 61508
  • PROFIsafe

Ongoing certification for IconTrust® HMI

  • IEC 61508
  • ISO 13849 PLe
  • IEC 62061 SIL3
  • PROFINET / PROFIsafe
  • IEC 62443-4-2 SL-1
